PET Bottle Energy Drink Filling Machine, Soft Drink Bottling Plant
CSD filling machine / bottling plant
1.Materials:SS304/316
2.Bottle size:200ml--2L
3.Capacitys:15,000 bottls/hour
4.Accept special design
5.CE ISO certificate
Introduction:
Drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a
fully automatic and high efficiency liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for
instance, filling valve, which directly contact medium are made of stainless steel or harmless
material.
Main Features
1. Rinsing, filling ,capping 3 in 1 machine.
2. The suspending bottle-neck clamping design make the bottle be stable during the high-speed running situation. By changing a few parts, it can meet the need of production for different types of bottles easily.
3. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle. The special filling valve makes the filling speed fast and the filling liquid level control exactly.
4. Magnetic torque is used for screw capping, and the power of screw capping can be adjusted step. Capping is stable,reliable and do no harm to the caps.
5. We are a professional manufacturer of middle and small filling and packing equipment of drinking water, carbonated drink, juice, tea, beer and so on.
6. We have well experienced workers who are manufacturing strictly according to cutsomer's requriement. Equipped with complete production lines, we are a market oriented enterprise.

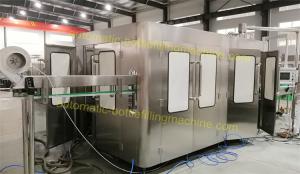

Machine pictures
Besides this DCGF32-32-10, we also have other capacity
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 |
| Rated production capacity(500ml) | 2000BPH | 4000BPH | 7000BPH | 8000BPH | 10000BPH | 12000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
when inquirying, pls answer the following questions:
1. what's bottle volume;
2. how many bottles per hour;
3. only this filling machine or all complete line plants
thanks
